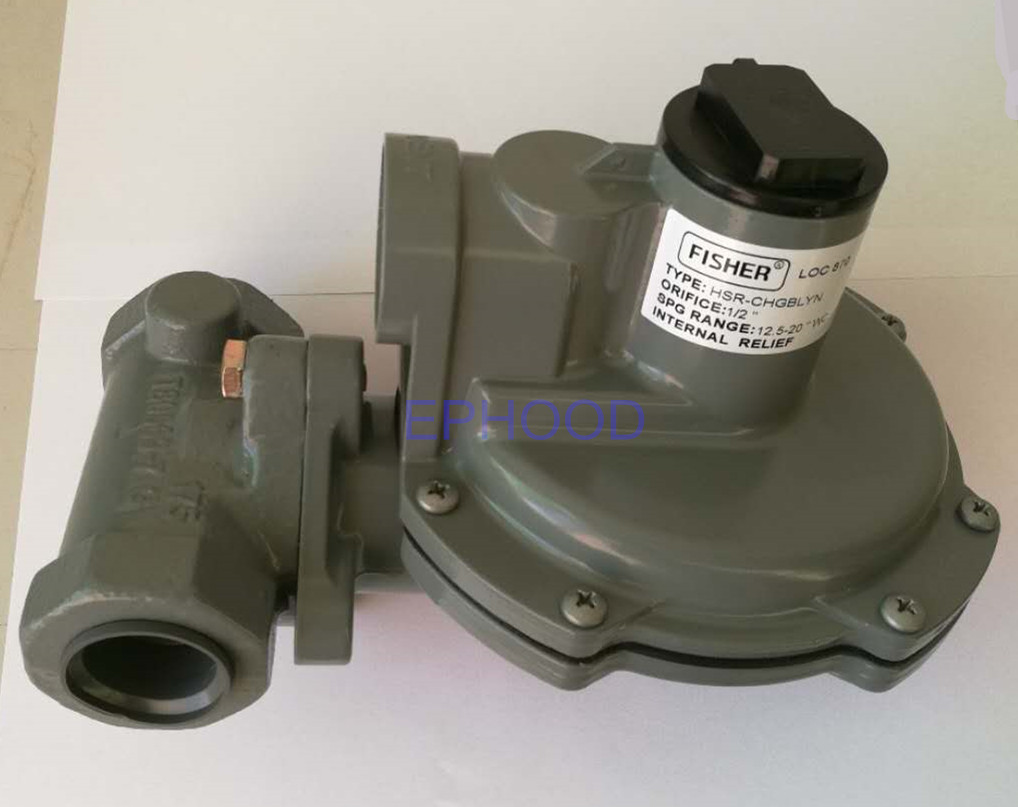

Fisher Brand 2nd Stage Pressure Gas regulator HSR-CHGBLYN
Type HSR direct-operated, spring-loaded pressure reducing regulators provide control in residential, commercial, and industrial applications for natural, manufactured, or liquefied petroleum gases.Internal relief across the diaphragm helps minimize overpressure. Any outlet pressure over the start-to-discharge point of the nonadjustable relief valve spring moves the diaphragm off the relief valve seat, allowing excess pressure to vent.Regulators meet ANSI B109.4/CGA 6.18.
Features
Angle Bodies
Globe Bodies
High Capacity
Compact Design
High Capacity Internal Relief
Meets or Exceeds ANSI B109.4 / CGA 6.18 Requirements
Fixed Factor / PFM Accuracy
Body Size and End Connection Styles
1 x 1-inch, NPT Globe Body
Allowable Inlet Pressure
Emergency: 150 psig / 10,3 bar
Maximum Operating Pressure: 125 psig / 8,6 bar
Allowable Outlet Pressure
Emergency (Casing): 25 psig / 1,7 bar
Maximum Operating Pressure to Avoid Internal Parts Damage: 3 psi / 0,21 bar differential above outlet pressure setting
Outlet Pressure
12.5 to 20-inches w.c. (31 to 50 mbar)
Outlet Pressure Ranges Of fisher HSR pressure regulator
4 to 6-inches w.c. (10 to 15 mbar)
6 to 8-inches w.c. (15 to 20 mbar)
8 to 10-inches w.c. (20 to 25 mbar
10 to 12.5-inches w.c. (25 to 31mbar)
12.5 to 20-inches w.c. (31 to 50 mbar)
20 to 35-inches w.c. (50 to 87 mbar)
1.25 to 2.2 psig (0.09 to 0.15 bar)
Pressure Registration
Internal
Temperature Capabilities
-20 to 160°F / -29 to 71°C
Table 1. Maximum Operating Inlet Pressure
| ORIFICE SIZE | WIDE-OPEN Cg | MAXIMUM OPERATING INLET PRESSURE TO OBTAIN |
| GOOD REGULATING PERFORMANCE |
| Inch | mm | FOR RELIEF SIZING | psig | bar |
| 1/8 | 3.2 | 12.5 | 125 | 8.6 |
| 3/16 | 4.8 | 28.2 | 100 | 6.9 |
| 1/4 | 6.4 | 50 | 60 | 4.1 |
| 3/8 | 9.5 | 105 | 30 | 2.1 |
| 1/2 | 13 | 185 | 20 | 1.4 |
Table 2. Outlet Pressure Ranges
| OUTLET PRESSURE RANGE | SPRING | SPRING WIRE DIAMETER | SPRING FREE LENGTH |
| COLOR | Inch | mm | Inch | mm |
| 4 to 6" w.c. / 10 to 15 mbar | Orange | 0.062 | 1.57 | 3.40 | 86.4 |
| 6 to 8" w.c. / 15 to 20 mbar | Yellow | 0.067 | 1.70 | 3.61 | 91.4 |
| 8 to 10" w.c. / 20 to 25 mbar | Black | 0.067 | 1.70 | 3.71 | 94.0 |
| 10 to 12.5" w.c. / 25 to 31 mbar | Silver | 0.072 | 1.83 | 4.10 | 104 |
| 12.5 to 20" w.c. / 31 to 50 mbar | Gray | 0.080 | 2.03 | 3.60 | 91.4 |
| 20 to 35" w.c. / 50 to 87 mbar | Pink | 0.093 | 2.36 | 3.52 | 88.9 |
| 1.25 to 2.2 psig / 0.09 to 0.15 bar | Light Blue | 0.105 | 2.67 | 3.66 | 94.0 |
Table 3. Relief Performance
| ORIFICE SIZE | MAXIMUM ALLOWABLE INLET PRESSURE IF OUTLET PRESSURE |
| IS HELD AT OR BELOW 2 psig / 140 mbar |
| Inch | mm | psig | bar |
| 1/8 | 3.2 | 125 | 8.6 |
| 3/16 | 4.8 | 65 | 4.5 |
| 1/4 | 6.4 | 30 | 2.1 |
| 3/8 | 9.5 | 10 | 0.69 |
| 1/2 | 13 | 7 | 0.48 |
| 1. The relief performance testing is in accordance with ANSI B109.4 and CGA 6.18, with the regulator set at 7-inches w.c. / 17 mbar, stem linkage disconnected, and vented directly to atmosphere using the 3/4 or 1-inch / 19 or 25 mm vent. |
